| Brand Name : | Helor PC |
| Model Number : | X45G i5-8350U |
| Certification : | Ce, Rohs, Sgs |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 500 Pieces |
| Delivery Time : | 15 work days |

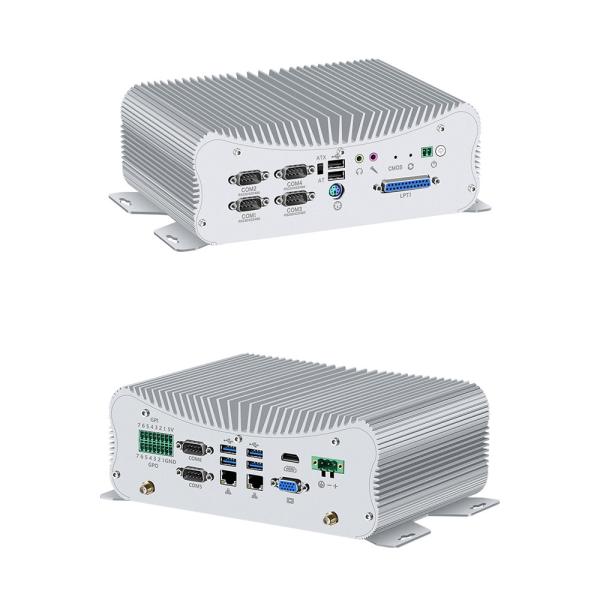

This fanless mini pc with strong storage hardware support, and supports dual-channel DDR4 SODIMM memory up to 32GB (16G x 2); it also supports mSATA SSD, M.2 NVME 2280 SSD, and 2.5-inch HDD/SSD this 3 kinds of hard disks, which provides both speed and capacity, with more guaranteed compatibility and stability.
Enabling it to operate in a fanless design. This fanless feature not only eliminates the noise associated with fans but also reduces the risk of dust and debris ingress, enhancing the computer's reliability in harsh industrial settings.
| CPU | Intel Core i5-8350U 4 Cores 8 Threads Processor, 3.40GHz Max Turbo Frequency, 6 MB Cache, 15W TDP |
| GPU | Intel® UHD Graphics 620 |
| Ethernet | 2*GbE RJ45 Intel i225-V Ethernet |
| Display | 1*VGA, 1*HDMI, Support Synchronised or Asynchronous Display |
| Memory | 2*SODIMM DDR4, Max Up To 32GB; 4G/8G/16G/32G Optional |
| Hard Disk | 1*M.2 NVME 2280 SSD, 1* mSATA SSD, 1*2.5" SATA SSD/HDD |
| Expansion Slot | 1*half-height mini-PCIE Slot, supports WIFI Bluetooth; 1*full-height mini-PCIE Slot (with SIM holder), supports 3G/4G module, WIFI Bluetooth; 1*Expansion IO, supports LPC, USB, PCIE |
| Operating System | Windows 8, Windows 10, Windows 11, Linux, etc. |
| Other | Supports Watchdog, Keystroke Restore, PXE Boot |
| Power | Output: AC 100-240V 50-60Hz, Input: DC 9V-36V |
| I/O Interface | 4 x USB3.0, 2 x USB2.0, 6 x DB9 COM (2*COM support RS232, 4*COM support RS485/RS422), 1 x HDMI, 1 x VGA, 1 x PS2 (keyboard and mouse 2-in-1), 14 x GPIO (7 inputs, 7 outputs), 1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button, 1 x 3pin Phoenix Terminal Power Dock (support 9-36V power input), 1 x Headphone Jack, 1 x MIC, 1 x Dipswitch (support ATX/AT power-on mode selection), 2 x Antenna connector (for WIFI/3G/4G) |
| Size/Weight | 249mm*150mm*86mm/ About 2.2kg |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30℃ ~ +70℃ (15℃ - 35℃ Recommended) |
| Relative Humidity | 10% ~ 90% ℃ (Relative humidity, No condensation) |
The fanless industrial mini computer equipped with the Intel Core i5 - 8350U processor is a remarkable piece of technology designed to meet the demands of industrial environments. Boasting 4 cores and 8 threads, this processor can handle multiple tasks simultaneously with ease. With a Thermal Design Power (TDP) of just 15W, the computer consumes less power.
Complementing the powerful processor is the Intel® UHD Graphics 620 GPU. This graphics unit provides decent graphical capabilities, making it suitable for applications that require high - quality visual output, such as industrial monitoring systems with detailed dashboards or even some light - weight graphic - intensive tasks.
It supports the setting of the incoming call self-start function, suitable for unstable and need to maintain a long time standby use of the environment, but also supports 7 * 24 hours of long and stable operation, no lag, no downtime, so that the industrial configuration software operation is more secure.
Our mini computer's body is crafted from high - strength aluminum alloy through a cold - rolled process. This design offers excellent anti - interference capabilities, making it suitable for electrically noisy environments. It's also highly wear - resistant, enduring regular use without damage, and pressure - resistant, withstanding external forces. Notably, it can operate stably across a wide temperature range from - 20 ℃ to +60 ℃.
With a low-power chipset industrial-grade motherboard and metal fins body cooling design. It ensures that the heat generated internally is discharged quickly. As a result, you won't be bothered by any fan noise. In addition, this design is not only noiseless, but also dust and moisture resistant. By effectively preventing dust and moisture from entering, it protects the internal components and extends product life and reliability. Say goodbye to dust accumulation and moisture damage problems.
|
|
